MDI

Manual Data Input

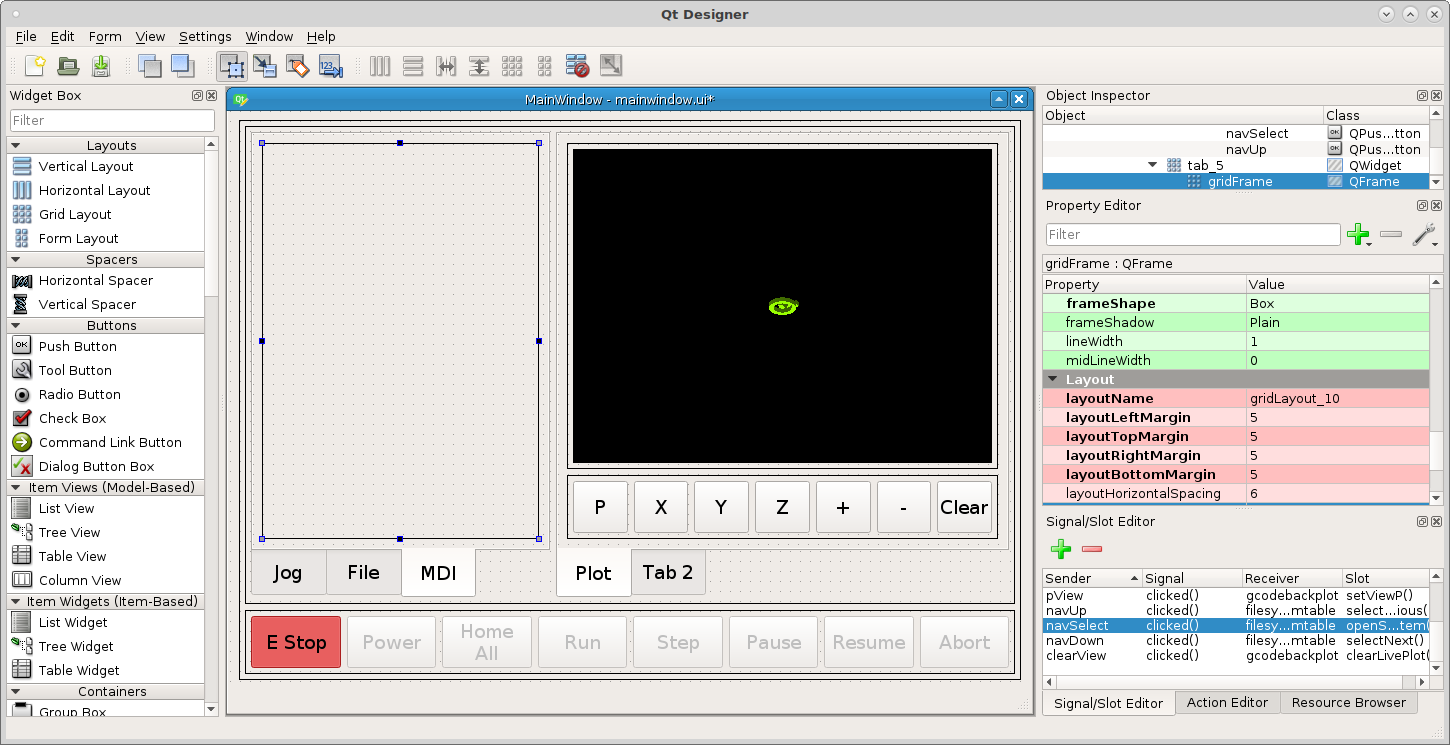

Start by adding a tab to the left tab widget. Right click on the File tab and select Insert Page then After Current Page and name that tab MDI. Drag a grid into the tab and change the tab layout to grid and morph the grid into a QFrame as before.

../../_images/vcp1-designer-23.png

Add a MDIEntry to the frame and and change the objectName to mdiEntry and change the font to 12 from the Property Editor. Now add some Push Buttons below that. Add 6 rows of buttons with 5 buttons in each row. Press the Ctrl key and click on each button to select them all. Right click on any button and select Assign to button group and click on New Button Group.

../../_images/vcp1-designer-24.png

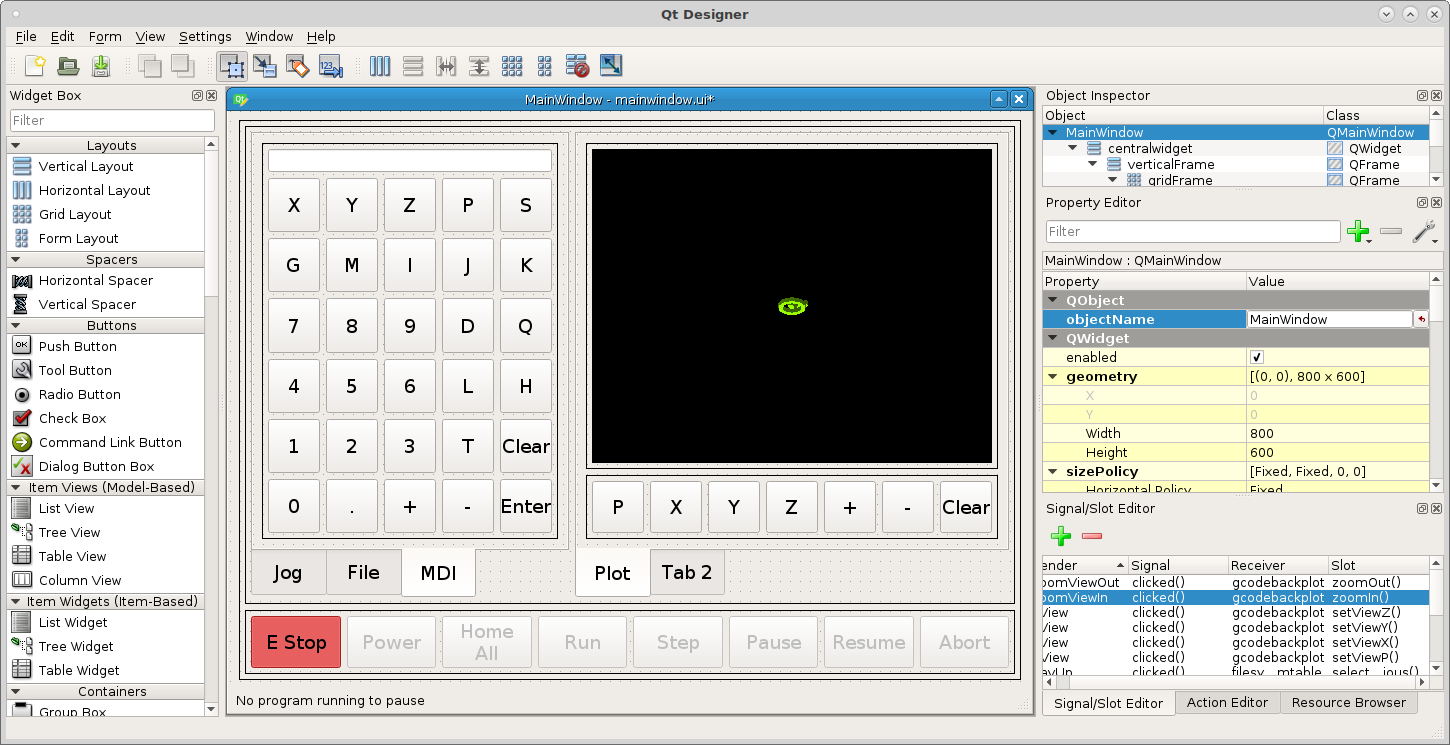

In the Object Inspector scroll down to the bottom and find the buttonGroup object we just created and change the objectName to mdiButtonGroup. Now we have a group of buttons that all belong to the same group. Now lets change the text of the buttons like the following and change the objectName for the Enter button to mdiEnterButton and the objectName for the Clear button to mdiClearButton. Right click on the Clear and Enter buttons and select Assign to button group None to remove them from the group.

../../_images/vcp1-designer-25.png

Now lets work some magic, open up ~/vcp1/vcp1/mainwindow.py and add the following Python code after # add any custom methods here and pay attention to the indentation level. The example uses 4 spaces per level. Don’t forget to add the line after super(MyMainWindow, self).__init__(*args, **kwargs)

from qtpyvcp.widgets.form_widgets.main_window import VCPMainWindow

# Setup logging
from qtpyvcp.utilities import logger
LOG = logger.getLogger('qtpyvcp.' + __name__)

class MyMainWindow(VCPMainWindow):
    """Main window class for the VCP."""
    def __init__(self, *args, **kwargs):
        super(MyMainWindow, self).__init__(*args, **kwargs)
        self.mdiButtonGroup.buttonClicked.connect(self.mdiHandleKeys)

    # add any custom methods here

    def mdiHandleKeys(self, button):
        char = str(button.text())
        text = self.mdiEntry.text() or '0'
        if text != '0':
            text += char
        else:
            text = char
        self.mdiEntry.setText(text)

What we are doing in the Python code is connecting all the buttons in the mdiButtonGroup to the function mdiHandleKeys. When a button is clicked it is passed to the function as button. So we take the button.text() and make sure it’s a string then assign it to the char variable. Next if the mdiEntry has any text in it we assign that to the text variable, if not then we assign it the character 0. Next we either append char to text or assign char to text. Last we set the new text to the mdiEntry.

The reason the Enter and Clear buttons are not part of the group is we will connect those two buttons clicked signal to the mdiEntry. These are the signals for the clear and enter buttons.

sender             action       receiver     slot
mdiEnterButton    clicked()     mdiEnter     submit()
mdiClearButton    clicked()     mdiEnter     clear()

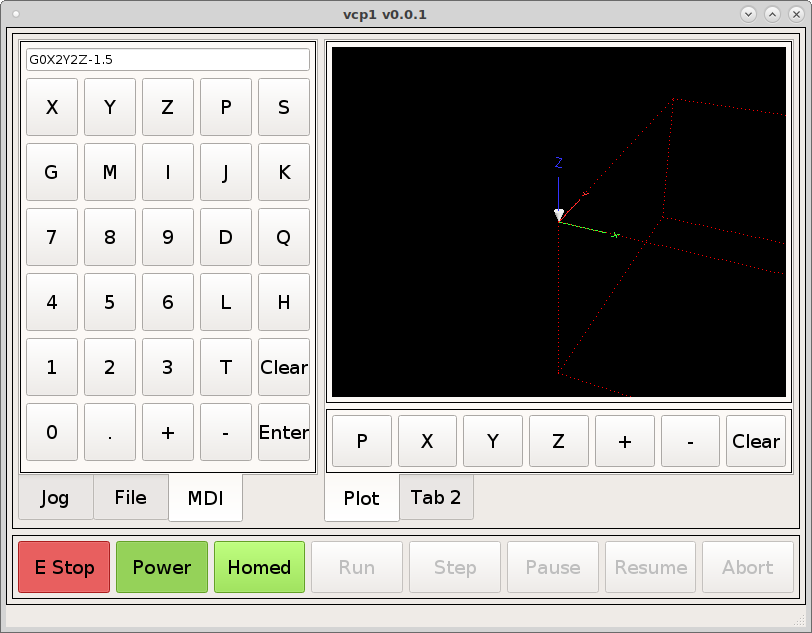

Now when we run the VCP we can enter and execute MDI commands from the touch screen
