OverridesΒΆ

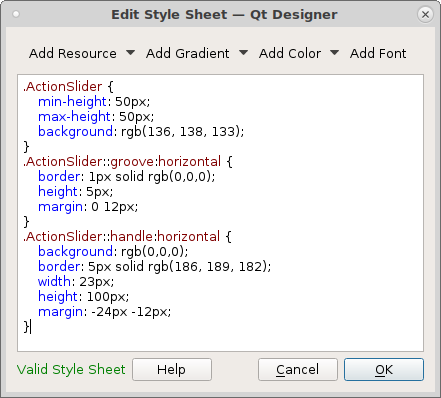

To add a Rapid Override start by adding an ActionSlider to a group box. Change the orientation to horizontal. Put machine.rapid-override.set in the ActionName. Now we need to change the size of the slider and make it big enough for a touch screen. In the stylesheet of the slider add the following.:

.ActionSlider {
    min-height: 50px;
    max-height: 50px;
    background: rgb(136, 138, 133);
}
.ActionSlider::groove:horizontal {
    border: 1px solid rgb(0,0,0);
    height: 5px;
    margin: 0 12px;
}
.ActionSlider::handle:horizontal {
    background: rgb(0,0,0);
    border: 5px solid rgb(186, 189, 182);
    width: 23px;
    height: 100px;
    margin: -24px -12px;
}
../../_images/slider-style-01.png

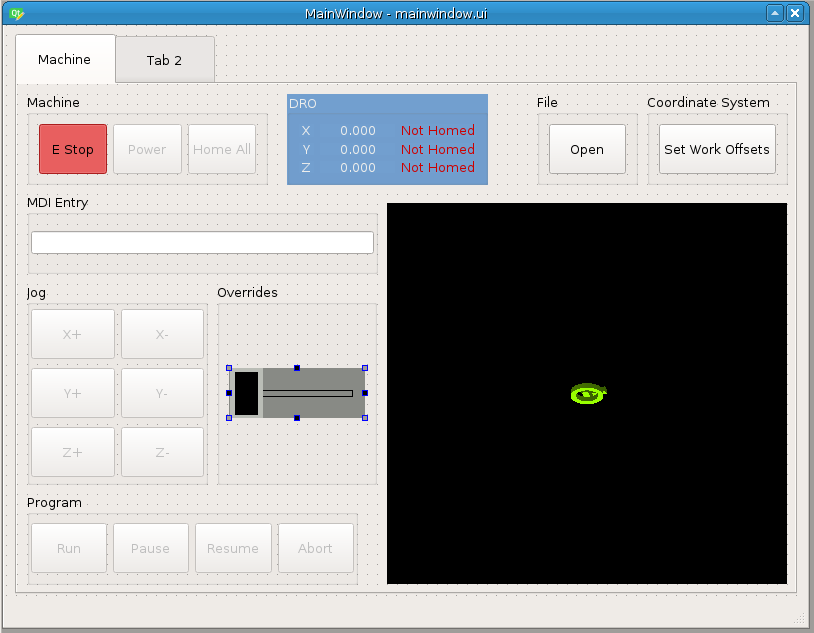

Now we have a slider big enough for a touch screen.

../../_images/vcp1-06.png

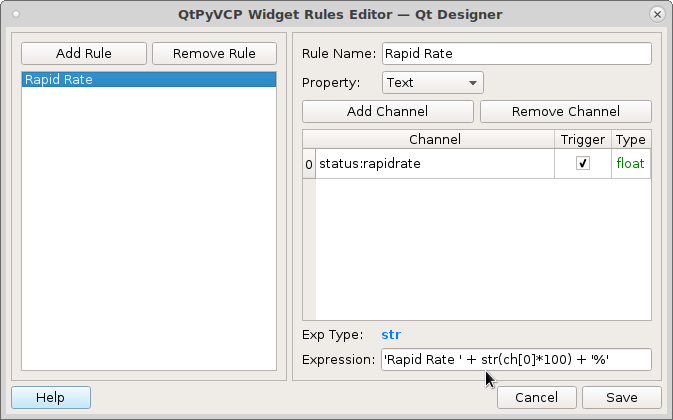

Next we need to add a status label to show the current override percentage. Add a StatusLabel above the slider in the group box and create a new rule for it and in the channel put status:rapidrate and the expression is 'Rapid Rate ' + str(ch[0]*100) + '%'.

../../_images/slider-rule-01.png

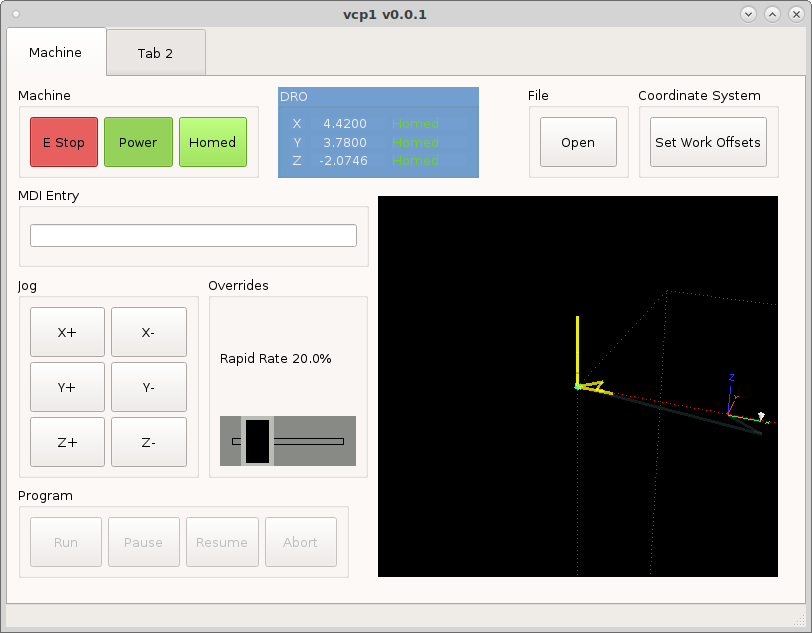

Now we can test the slider by issuing a rapid MDI command and moving the slider.

../../_images/vcp1run-18.png

Now lets add a second slider and status label for Feed Override. Add the ActionName machine.feed-override.set then set the orientation to horzontal and add the same style as the first slider.

Now add the status label and create a rule as above with the channel status:feedrate and the expression is 'Feed Rate ' + str(ch[0]*100) + '%'.

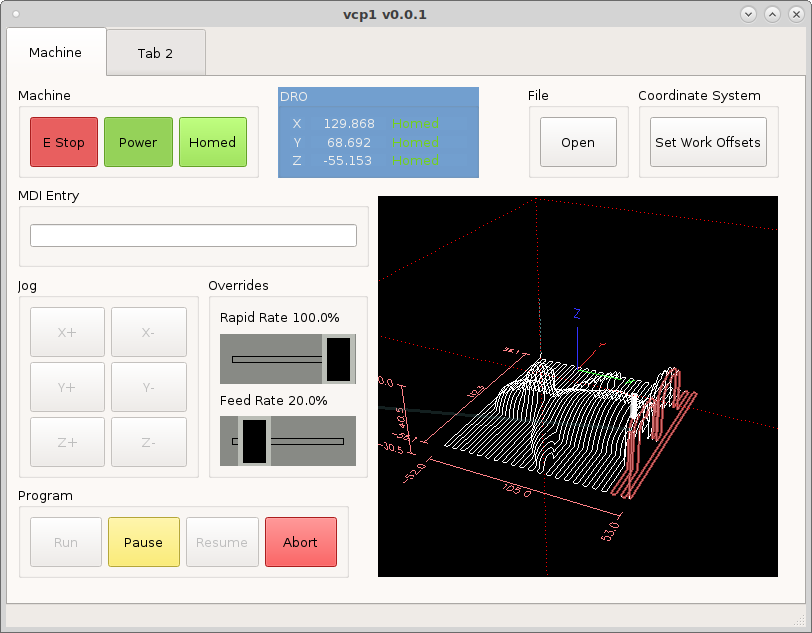

Run the VCP and load a program to test the feed rate override slider.

../../_images/vcp1run-19.png
