A collection of menu providers for use in YAML menu definitions.

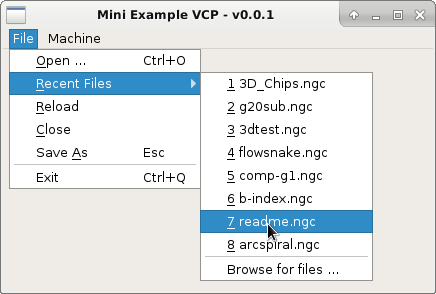

Recent Files Menu

../_images/recent_files_menu.png

Recent Files Menu

class qtpyvcp.widgets.recent_files_menu.RecentFilesMenu(parent=None, files=None, max_files=10)[source]

Recent Files Menu

Recent files menu provider.

Parameters:
  • parent (QWidget, optional) – The menus parent. Default to None.

  • files (list, optional) – List of initial files in the menu. Defaults to None.

  • max_files (int, optional) – Max number of files to show. Defaults to 10.

Example

YAML config:

main_window:
    menu:
      - title: File
        items:
          - title: &Recent Files
            provider: qtpyvcp.widgets.recent_files_menu:RecentFilesMenu
            kwargs:  # optional keyword arguments to pass to the constructor
              max_files: 15
update(self)[source]
update(self, a0: QRect) None
update(self, a0: QRegion) None
update(self, ax: int, ay: int, aw: int, ah: int) None

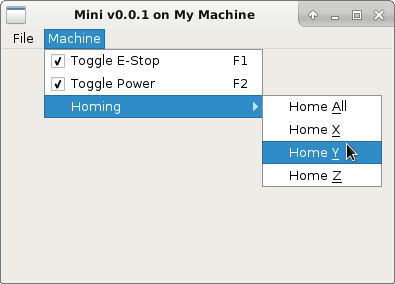

Homing Menu

../_images/homing_menu.png

Homing Menu

Homing Menu Provider

class qtpyvcp.widgets.menus.homing_menu.HomingMenu(parent=None, axes=None)[source]

Homing Menu Provider

Parameters:
  • parent (QWidget, optional) – The menus parent. Default to None.

  • axes (list, optional) – List of axes for which to show a homing action. If not specified the axis letter list from the INI file will be used.

Todo

Add un-homing actions if the axis is already homed.
